Whole House Water Treatment
WH-5, WH-10, WH-20, WH-25
Premium Whole House Systems: For challenging water conditions

Residential customers and online orders please go to FilterDirect for ordering replacement parts and filters for your RO system.

Click here to enlarge

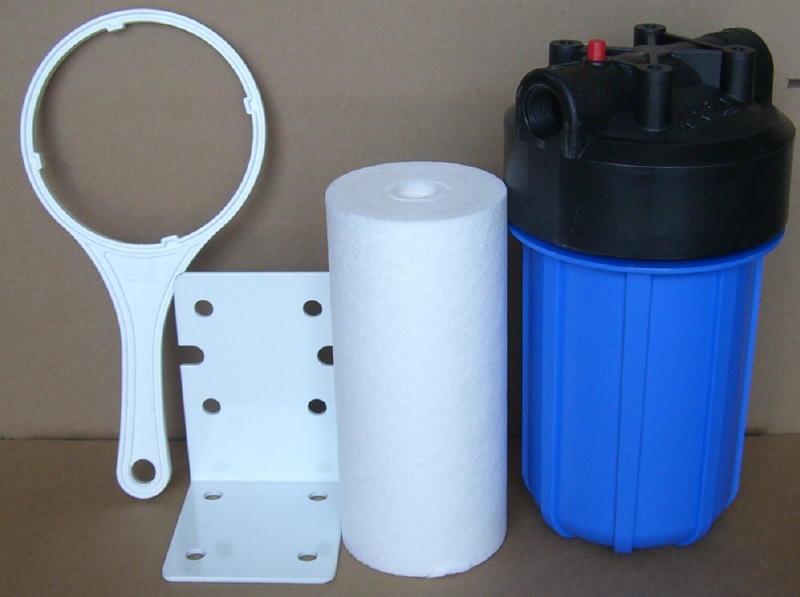

WH-5
  • Connect to water main, ¾" and 1" pipe
  • 5 micron sediment filtration, removes rust, dirt, sand, and sediment larger than 5 micron
  • pressure release valve
System includes:
  • 5miron pleated polypropylene filter
  • Steel mounting bracket
  • Filter housing wrench
Operating range:
  • Max. flow rate: 6 GPM
  • Max. operating pressure: 90 psi
  • Max. temperature: 100F
  • Min. temperature: 40F
Dimension of filter: 4.25" x 10"
Dimension of housing: 7" x 14"

Click here to enlarge

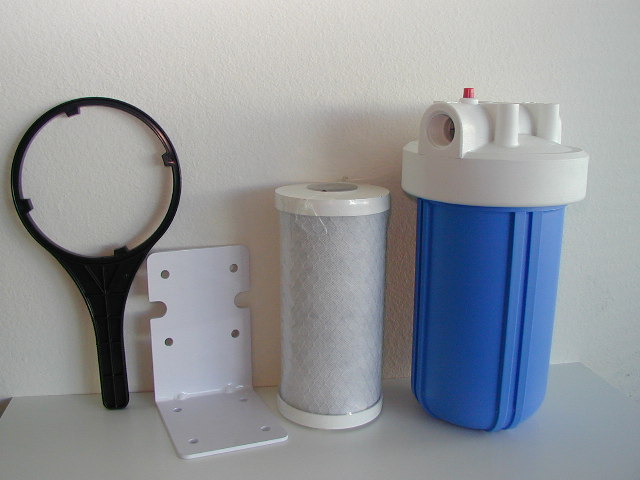

WH-10
  • Connect to water main, ¾" and 1" pipe
  • Removes chlorine, bad taste & odor
  • pressure release valve
System includes:
  • 10 miron carbon block filter
  • Steel mounting bracket
  • Filter housing wrench
Operating range:
  • Max. flow rate: 3 GPM
  • Max. operating pressure: 90 psi
  • Max. temperature: 100F
  • Min. temperature: 40F
Dimension of filter: 4.25" x 10"
Dimension of housing: 7" x 14"

Click here to enlarge
WH-25
  • Connect to water main, ¾" and 1" pipe
  • 5 micron sediment filtration, removes rust, dirt, sand, and sediment larger than 5 micron
  • pressure release valve
System includes:
  • 5 miron filter
  • Steel mounting bracket
  • Filter housing wrench
Operating range:
  • Max. flow rate: 10 GPM
  • Max. operating pressure: 80 psi
  • Max. temperature: 100F
  • Min. temperature: 40F
Dimension of filter: 4.25" x 20"
Dimension of housing: 7" x 23"

Click here to enlarge
WH-20
  • Connect to water main, ¾" and 1" pipe
  • Removes chlorine, bad taste & odor
  • pressure release valve
System includes:
  • 10 miron carbon block filter
  • Steel mounting bracket
  • Filter housing wrench
Operating range:
  • Max. flow rate: 7 GPM
  • Max. operating pressure: 90 psi
  • Max. temperature: 100F
  • Min. temperature: 40F
Dimension of filter: 4.25" x 20"
Dimension of housing: 7" x 23"

Click here to enlarge
WH-250
Combing WH-20 and WH-25, Double filtration unit for both sediment filtration and carbon filtration system
  • Connect to water main, ¾" and 1" pipe
  • 5 micron sediment filtration, removes rust, dirt, sand, and sediment larger than 5 micron
  • 10 miron carbon block filter
  • pressure release valve
System includes:
  • 5 miron pleated polypropylene filter
  • Steel mounting bracket
  • Filter housing wrench
Operating range:
  • Max. flow rate: 10 GPM
  • Max. operating pressure: 80 psi
  • Max. temperature: 100F
  • Min. temperature: 40F
Dimension of filter: 4.25" x 20" each filter
Dimension of housing: 7" x 23" each housing
Dimension of the steel frame: 10" x 28"

Click here to enlarge
WS-150M
Problem Solution
  • scale forming, white stain around tubs and sink
  • pipes clogging
  • water stains, white color, calcium and magnesium scales
  • light rust, iron problem, reddish color around sink and tub
Water softener System includes:
  • Water softening resin tank
  • Salt tank
  • Meter control valve: auto regeneration
  • Bypass valve 3/4” inlet/outlet
  • Stainless steel outer jacket is optional
  • Capacity: 45,000 grains per regeneration or 1.5 cuft of resin by volume
  • Dimension: 10” diameter x 54” height

Click here to enlarge

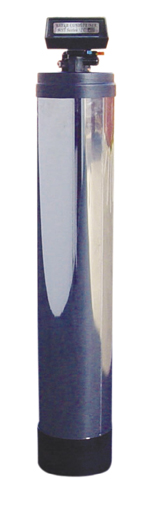

ACF-150T
Problem Solution
  • Chlorine problem
  • Heavy chlorine
  • Water makes skin and hair very dry
  • Hot water has strong chlorine fume
Caron System includes:
  • Granular activated carbon tank
  • Timer control valve: auto back-wash
  • Bypass valve 3/4” inlet/outlet
  • Stainless steel outer jacket is optional
  • Capacity: 45,000 grains per regeneration or 1.5 cuft GAC carbon
  • Dimension: 10” diameter x 54” height
