TESTERS/MEASUREMENT
Meters: TDS Meter, Digital Pressure Tester
Digital Pressure: Dry Pressure Gauge, Oil Filled Pressure Gauge
Flow:Flow Meter, Flow valve - side mount, Flow valve - top mount
TDS Water Quality Meter
Click here to enlarge
578
List Price: $36
It measures the total dissolved solids in terms of ppm. Use the meter to measure water purity, and monitor the performance of RO or DI systems.
Range: 0 ppm to 9990 ppm
Accuracy: ±2% F.S. temperature compensated
Resolution: 1 ppm
Dimension: 6" X 1.25" X 1"
Battery include

Digital Pressure Tester
Click here to enlarge
565
List Price: $13
It measures air pressure in terms of (psi)
Range: 0.0 to 99.9 psi
Accuracy: ±2% F.S.
Resolution: 1 ppm
Dimension: 5.5" X 1.25" X 1"
Auto shut off
Battery include

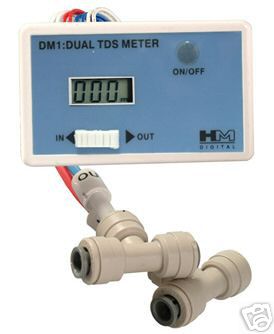

DM-1 Inline Dual TDS monitor (meter) for RO DI system
Click here to enlarge
DM-1
List Price: $36
* Displays TDS levels of the feed water and product water with in & out electrode probes.
* Highly efficient and accurate due to its advanced microprocessor technology.
* Auto-Off function conserves battery power. The unit shuts off automatically after 10 minutes of non-use.
* Dual Range 0-9990 ppm (From 0 - 999 ppm the resolution is 1 ppm. From 1000 to 9990 ppm, the resolution is 10 ppm, indicated by a blinking 'x10' image.)
* Factory Calibrated: our meters are calibrated with a 342 ppm NaCl solution. Meters can be recalibrated with a mini-screwdriver.
* Equipped with John Guest Quick-Connect T-fittings as shown.
* Installs quickly and easily.

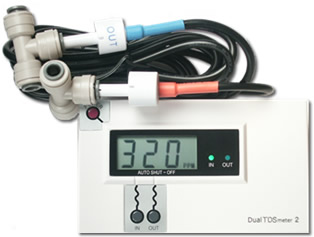

DM-2 Inline Dual TDS monitor (meter) for RO DI system
Click here to enlarge
DM-2
List Price: $45
Differences from the DM-1:
* Designed for commercial/industrial applications.
* Stronger, water-resistant casing.
* Calibration can be done individually or simultaneously on each line.
* Improved design, including an extra large, easy-to-read LCD display.
* Longer, waterproof, shielded cables.
* Variable mounting bracket.

Float Valve, Side Mount
Click here to enlarge
FV-14
List Price: $19
Material: polypropylene float, stainless steel arm and fitting, 1/4" tubing connection.
Application: mount it on the side of the container to control water level
Dimension: float, 3" length, 3/8" diameter

Float Valve, Top Mount
Click here to enlarge
FV-15
List Price: $19
Material: polypropylene float, stainless steel arm and fitting, 1/4" tubing connection.
Application: mount it on the lid of the container to control water level
Dimension: float, 3" length, 3/8" diameter

Flow Meters

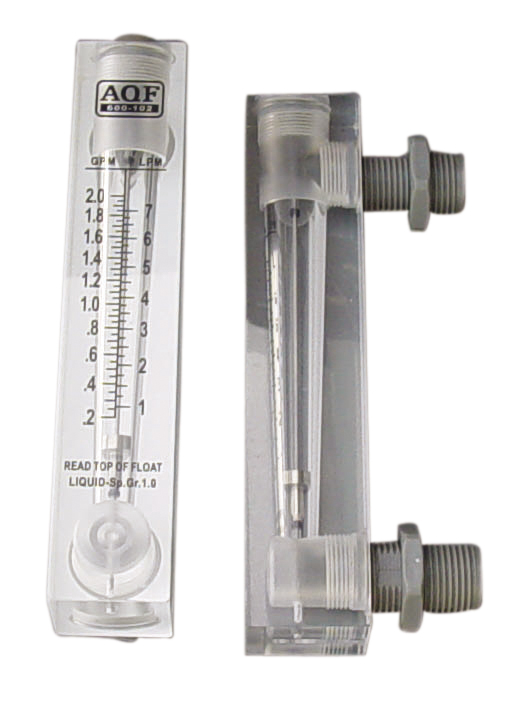

Flow Meter (Panel Mount)
Click here to enlarge

Part NoGPMLPMConnectionList Price
AQF-600-1020.2-21-73/8" MPT $60
AQF-600-1051-52-201/2" MPT $60
AQF-600-1101-105-351" MPT $90
AQF-600-2202-2010-701" MPT $90

Pressure Gauge
Dry Pressure Gauge
Click here to enlarge
Dry pressure gauge is for monitoring air or water pressure
Material: plastic casing, brass connector, 1/8 " MPT
Dimension: 1.5 " dia. 1" thickness
Range: 0 - 100 psi or 0 -300 psi
Part NoGauge PressureList Price
PG-151000-100 psi $15
PG-153000-300 psi $15
Oil Filled Pressure Gauge (Side Mount)
Click here to enlarge
Ideal for environmental that has vibration. Monitor air or water pressure
Style: Side mount
Material: 304 stainless steel casing and connector, acrylic window
Dimension: 2.5" diameter, 1" thickness, 1/4" MPT
Scale: psi and Kg/cm2 Pascal
Part NoGauge PressureList Price
PG-100-S0-100 psi $35
PG-150-S0-150 psi $35
PG-200-S0-200 psi $35
PG-300-S 0-300 psi $35
Oil Filled Pressure Gauge (Panel Mount)
Click here to enlarge
Ideal for environmental that has vibration. Monitor air or water pressure
Style: Panel mount
Material: 304 stainless steel casing and connector, acrylic window
Dimension: 2.5" diameter, 1" thickness, 1/4" MPT
Scale: psi and Kg/cm2 Pascal
Part NoGauge PressureList Price
PG-100-P0-100 psi $35
PG-150-P0-150 psi $35
PG-200-P0-200 psi $35
PG-300-P0-300 psi $35
